90° bend heat shrink boot
Used for mechanical protection and stress relief of cables and bent plugs. It can bridge the gap between cable components and connectors, seal waterproof and insulation protection.

According to the different requirements of the use environment, suitable materials can be selected to meet the military and commercial multi-level requirements. It is easy to install and use and waterproof with glue.

Optional DR-25 high-temperature and fluid resistance material, resistant to aviation and diesel fuels, hydraulic fluids and lubricating oils. Particularly suitable as a jacketing material for military ground vehicle cables and harnesses.

With lips optional

RoHS and REACH compliant

Product Description:

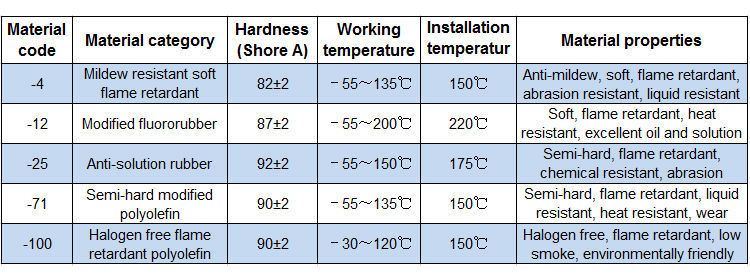

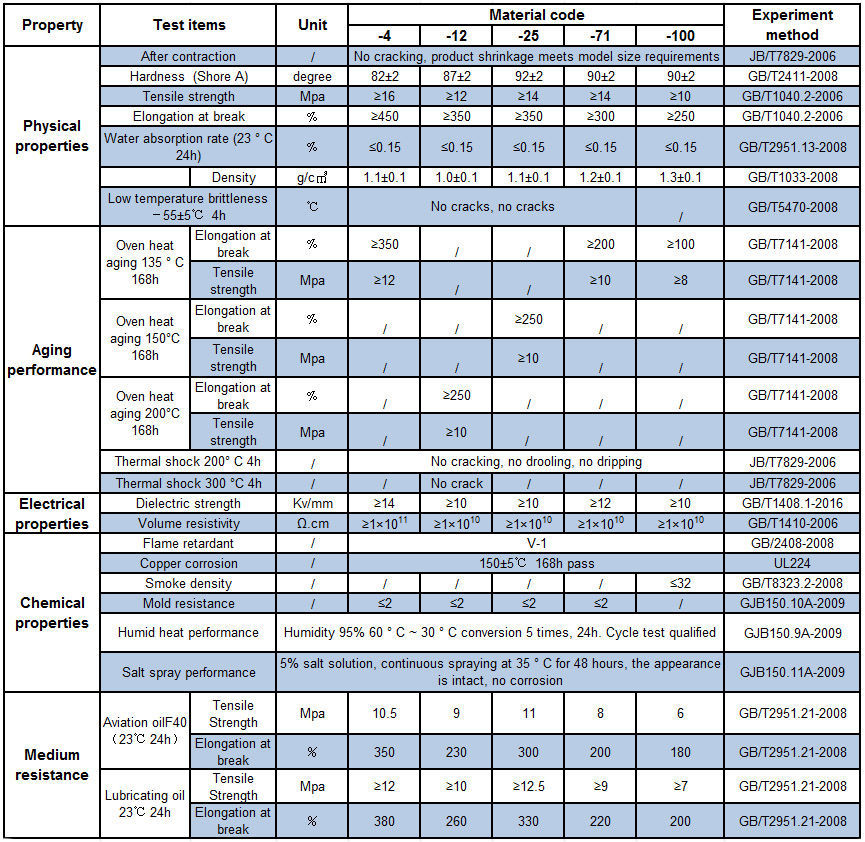

Property:


Size:

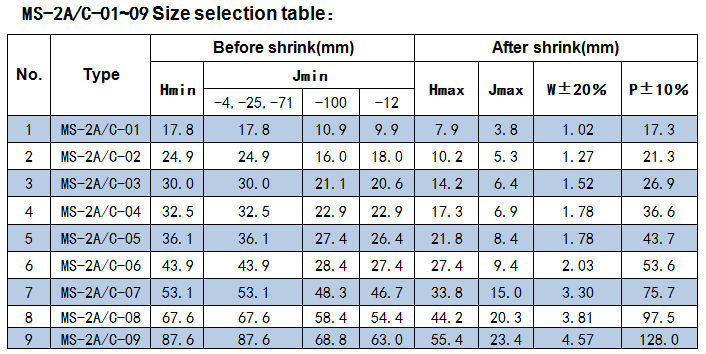

MS-2A/C-01

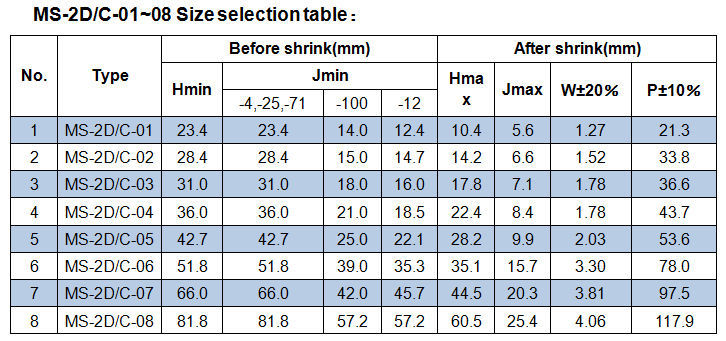

MS-2D/C-01

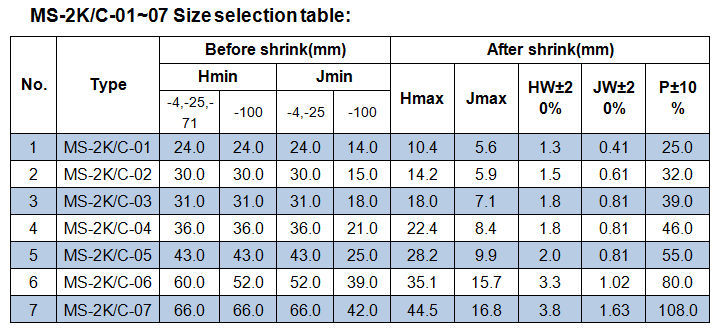

MS-2K/C-01



Video:
